QTZ63(5013) Topkit tower crane

Category：

E-Mail：

E-Mail：

Keywords：

Description

Topkit tower crane is used for high-rise civil architecture, bridge and water conservancy projects, long span industrial factory buildings,etc.

Loading capacity

Jib length(m)	16	19	23	27	29	32	35	38	40	42	44	46	48	49	50
3t-27.795	3	3	3	3	2.844	2.507	2.228	1.993	1.856	1.732	1.169	1.516	1.422	1.378	1.335
6t-15.742	5.881	4.818	3.833	3.140	2.865	2.516	2.228	1.985	1.844	1.715	1.599	1.492	1.395	1.349	1.305

Mechanism specification

Hoisting				KW
	m/min	80.5/40.6/8.7	40.3/20.3/4.35	24/24/5.4
	T	1.2/3/3	2.4/6/6	24/24/5.4
Trolleying		m/min	43.4/21.7	3.3/2.2
Slewing		r/min	0.68	3.7x2
Climbing		m/min	0.4	5.5
Necessary electric power	40.2
Main supply	~380V/50Hz
Jib length(m)	50
Counterbalance(t)	11

Honor

Corporate Environment

Factory appearance

Transport packaging

Customer visit

FAQ

...

Bolts are loose and not tightened

Preventive measures: After the tower crane is installed, the bolts of each link must be tightened again and tightened regularly during use, with an interval of no more than one week. A new tower crane must be tightened no more than once every three days in the first two months of use.

Verticality out of tolerance

Preventive measures: When burying the tower crane foundation base, carefully perform leveling, especially after the concrete is poured, the leveling must be checked again. During use, after anchoring and jacking, the verticality must be checked in time. If a problem is found, find out the cause in time and put it back in place.

Open welding, cracks, deformation, twisting, etc. of the frame

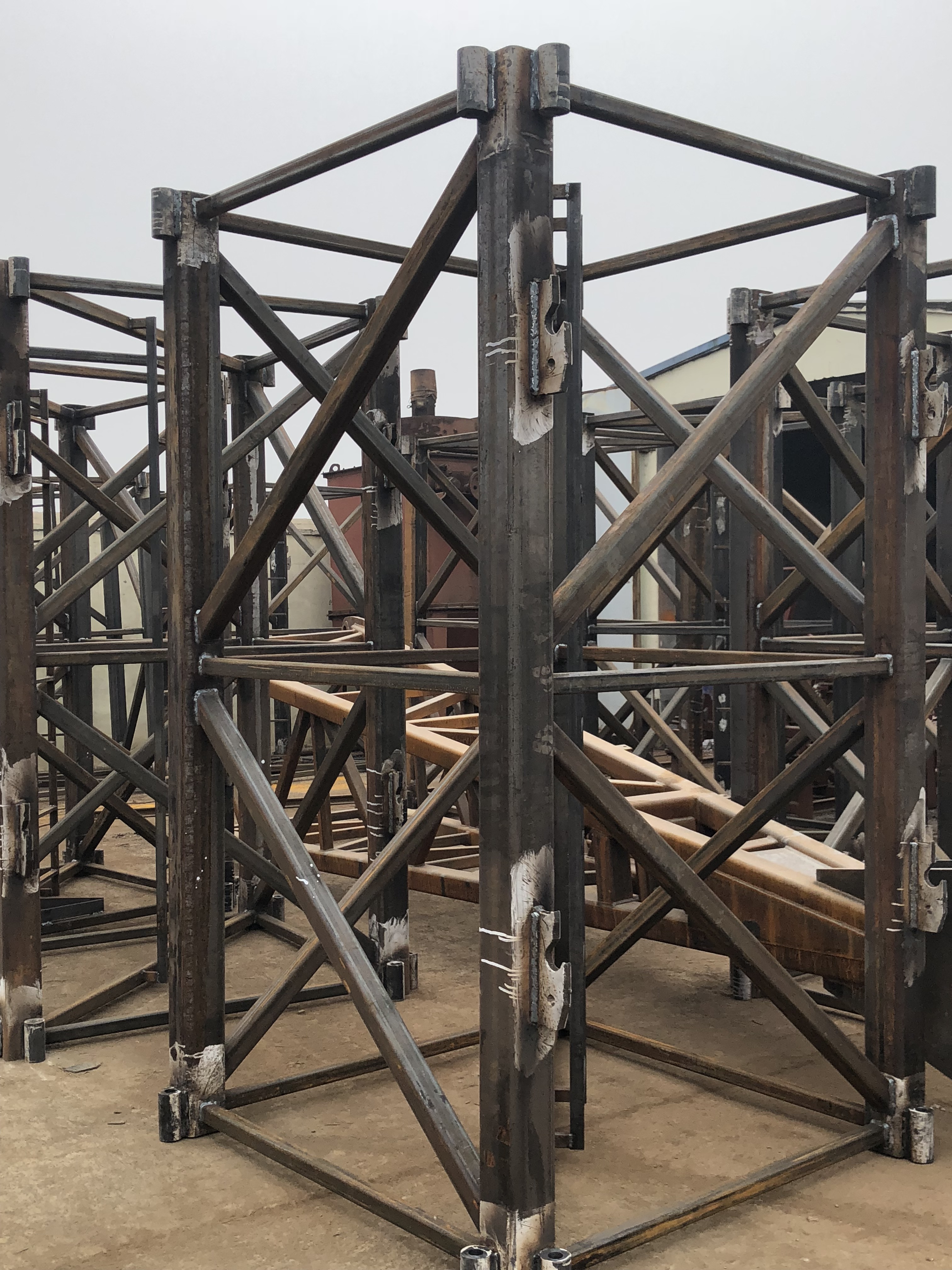

Preventive measures: Before entering the site, carefully check whether there are any defects in the standard section, big arm, balance arm and other parts. If you want to paint, you must check before painting.

Water accumulation on foundation

Preventive measures: Set up a water accumulation pit and use a sewage pump to pump out the accumulated water.
